LiTROS Float Cut-Tilt
Glass cutting system with tilting elements
Description

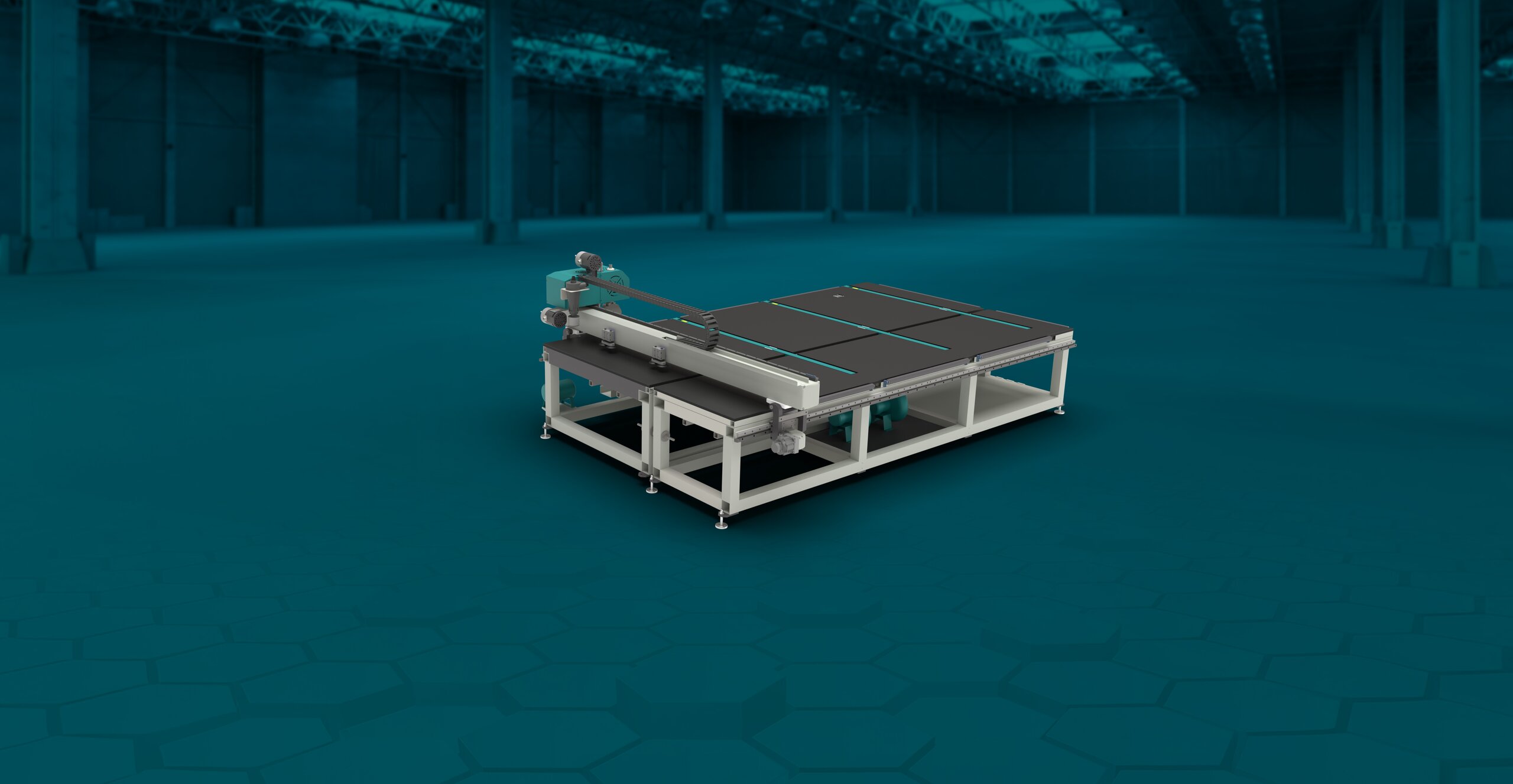

LiTROS Float Cut-Tilt
The LiTROS Float Cut-Tilt is a glass cutting system with tilting elements, which was specially developed for cutting and coating float glass. It enables cutting from glass panes up to a size of max. 3700 x 2700 mm and offers precision and efficiency in glass processing.

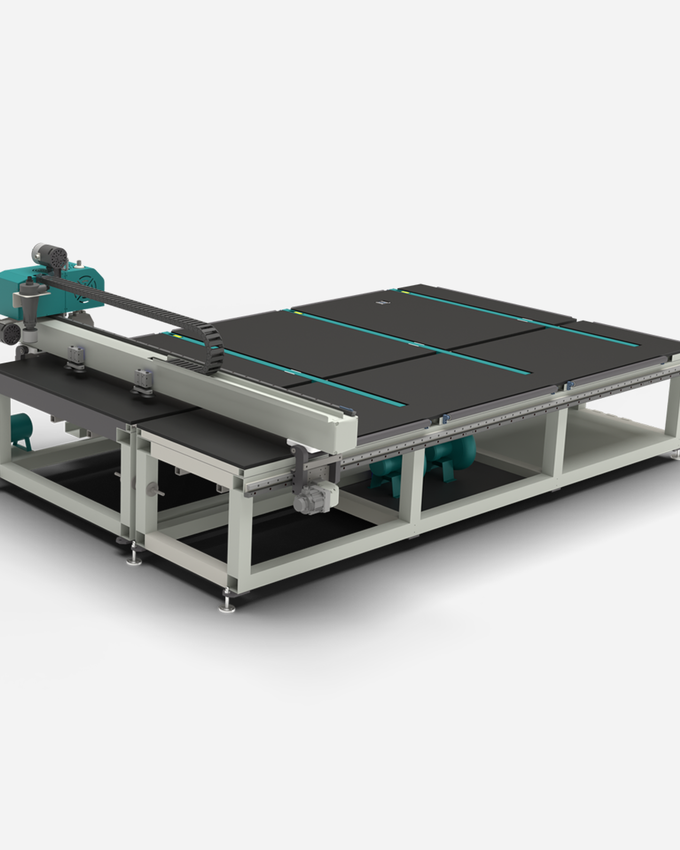

Components of the system
Tilt function
Edge decoating module
Cutting pressure control
Table surface
Cutting bridge
Control panel
LiTROS Float Cut-Tilt
Highlights
01
Precision & efficiency when cutting glass
The LiTROS Float Cut-Tilt allows cutting from float glass up to 3700 x 2700 mm — with automatic cutting pressure regulation, a cutting speed of 160 m/min and a tolerance of only ±0.3 mm.
Integrated tilting & decoating functions
Thanks to tilting elements for easy loading and unloading and an edge removal module for low-e glass, the system offers maximum flexibility and efficiency in glass processing.
Intuitive operation & modern technology
A 65-inch control panel, electronic control and X-axis gantry drive ensure user-friendly operation and maximum process reliability.
Perfectly coordinated
Function & procedure
01
Tilting function of partial elements of the cutting table
Enables manual loading and unloading of glass panes using a vacuum lifter
02
Edge decoating function
Specially developed for coating the edges of low-e coated glass panes
03
Automatic cutting pressure control
Ensures optimal cutting results
04
Table surface
Equipped with durable air cushion felt for gentle transport of the glass panes
05
Cutting bridge
With X-axis gantry drive technology for precise and efficient processing
06
Operating concept
A simple and intuitive operating concept including a 65-inch monitor makes it easy to use the system
Specifications
LiTROS Float Cut-Tilt
Here you can find all relevant features of our machine.
Maximum processing: 3700 x 2700 mm/6000 x 3300 mm
Automatic cutting: Float glass in X, Y, Z, W and special shapes
Cutting pressure regulation: Automatically controlled electronically
Cutting speed: 160 m/min
X-axis acceleration: 6 m/sec²
Cutting tolerance: +/- 0.3 mm
Glass thickness: 3 - 19 mm
Abrasive dust extraction: Using a vacuum cleaner
