LiTROS Horizontal Washer
Washing and drying system for cleaning flat glass
Description

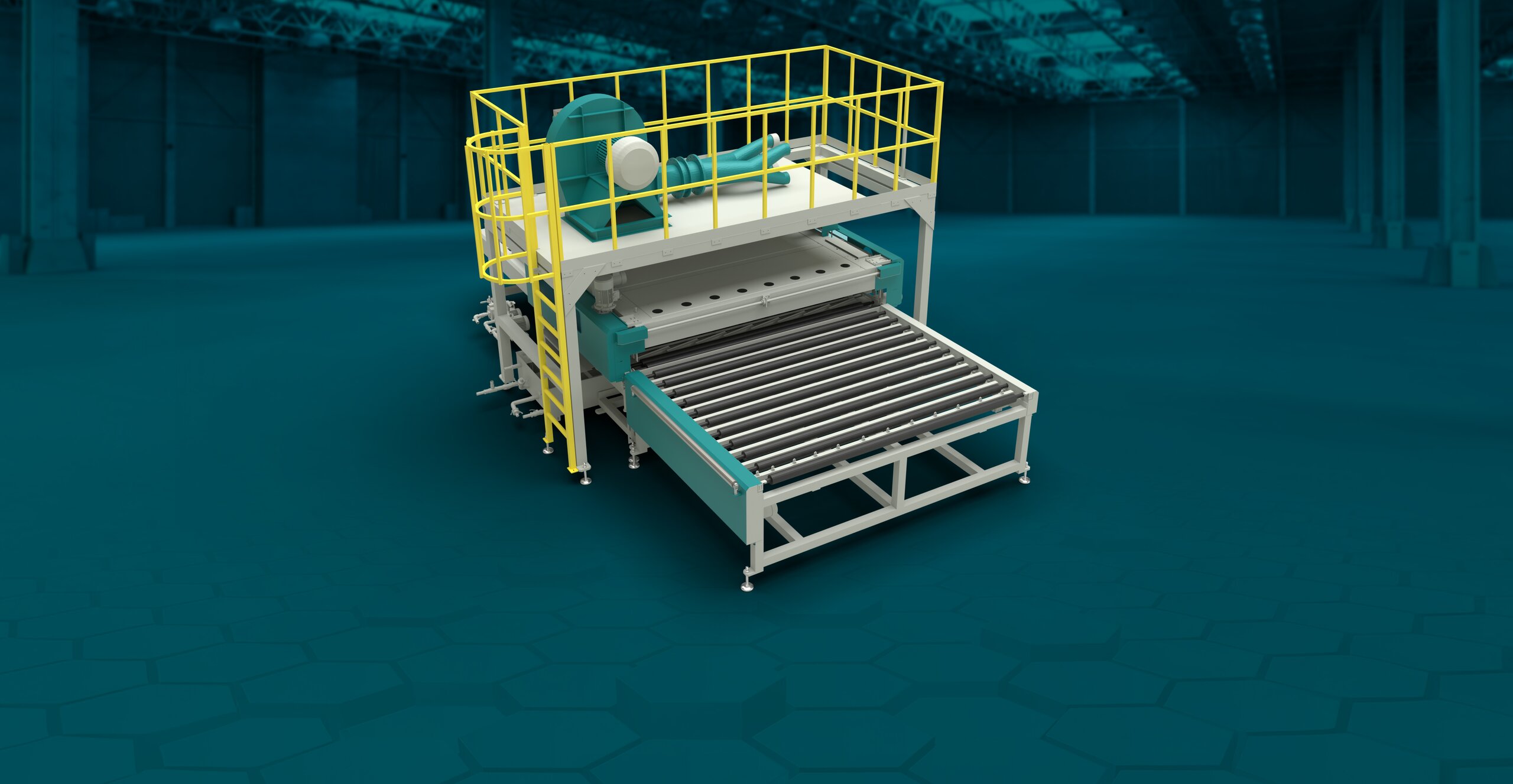

LiTROS Horizontal Washer
The LiTROS Horizontal Washer is a glass washing and drying system that was specially developed for the efficient cleaning of flat glass. It offers reliable glass cleaning and is available in three versions for processing different maximum dimensions:
- Up to 3600 mm x 2400 mm
- Up to 5000 mm x 3000 mm
Components of the insulated glass line:
Inlet transport station
Glass washing & drying system with three pairs of cylindrical brushes
Digital display of brush distance or glass thickness, with manual adjustment via motor
Drive rollers
Washing water
Drying the glass panel with the aid of two high-pressure air knives
LiTROS Horizontal Washer
Highlights
01
Efficient cleaning & drying:
Three pairs of cylindrical brushes ensure thorough cleaning, even with low-e coatings. Two high-pressure air knives ensure that the glass panes dry.
Easy adjustment & control
The digital display of the glass thickness and manual adjustment of the brush distances allow adjustment to different glass thicknesses.
Stable & safe transport
The inlet transport station and solid rubber-coated drive rollers ensure safe and smooth transportation of the glass panes.
Perfectly coordinated
Function & procedure
01
Importing
The glass panel is transported into the washing machine via solid rubber coated drive rollers. The automatic feed starts as soon as the transport rollers of the downstream washing machine touch the glass pane
02
Washing process
The glass panel is placed between the pairs of brushes via opposite, solid rubber-coated drive rollers acting from above and below. Six nylon brushes (2 x 3 pairs of brushes) ensure thorough cleaning, even with low-e coatings
03
Drying
At the end of the washing zone, the glass pane is transported into the dry zone, where it is dried efficiently during transportation
04
Outgoing transport
The dry glass pane is transported to the outlet zone via solid rubber-coated drive rollers
Specifications
LiTROS Horizontal Washer
Here you can find all relevant features of our machine.
Direction: Right - left or left - right
Maximum glass length: 3600 mm, 5000 mm
Maximum glass width/depth: 2400 mm, 3000 mm
Minimum glass length: 500 mm
Minimum glass width/depth: 300 mm
Glass thickness: 3 — 20 mm
Transport speed: 2 — 8 m/min
