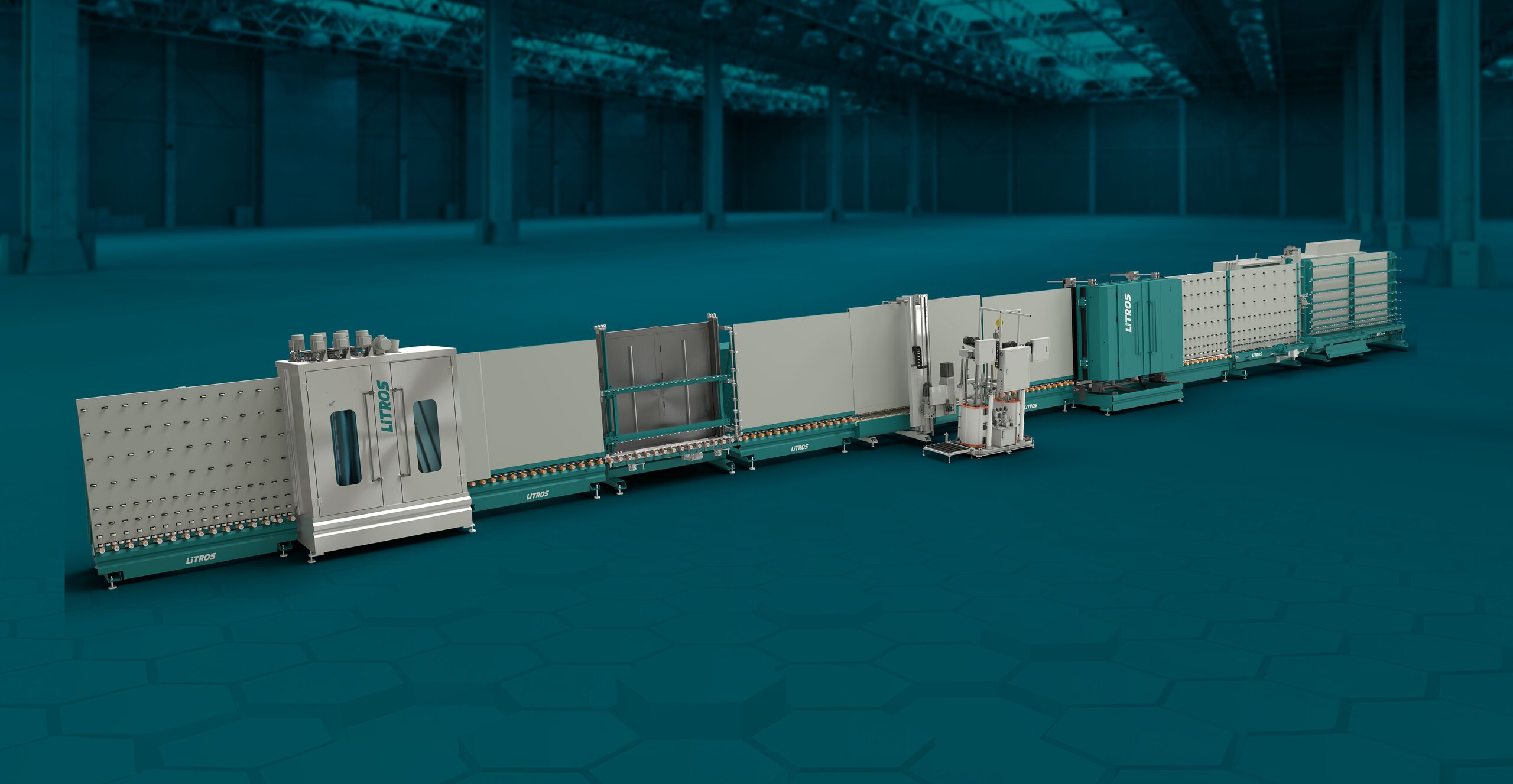

LiTROS IG Line Thermoplastic
Insulating glass line LiTROS IG Line Thermoplastic It offers an automatic solution for the production of insulated glass elements with rigid and thermoplastic. spacer frame. The vertical line processes rectangular elements up to 3,600 × 2,400 mm and combines cleaning, inspection, framing, assembly and sealing in a continuous process.
system It is designed without automatic gas filling and enables the production of double and triple insulated glass elements with integrated automatic sealing.
Components of insulating glass line:
Transport stations with rollers and air cushion technology
Glass washing and drying plant
Inspection and manual frame positioning station
Thermoplastic applicator spacer
Assembly press
Automatic sealing machine
LiTROS Insulating Line
Highlights
01
Flexible spacer processing:
Thermoplastic processing spacer and manual placement of rigid frame ones in one line
Integrated glass cleaning and drying:
Reliable continuous preparation of the glass panes through washing and drying processes
Gentle and controlled glass transport:
Transport via air cushions and rollers reduces contact contamination and protects surfaces
Visual inspection and manual post-cleaning:
Good accessibility and optimised lighting for reliable quality control
Precise assembly:
Exact press force control for reproducible results with different element sizes
Automatic sealing:
Consistent quality through controlled dosing, mixing ratio and adjustment to frame conditions
Perfectly coordinated
Sophisticated stations
01

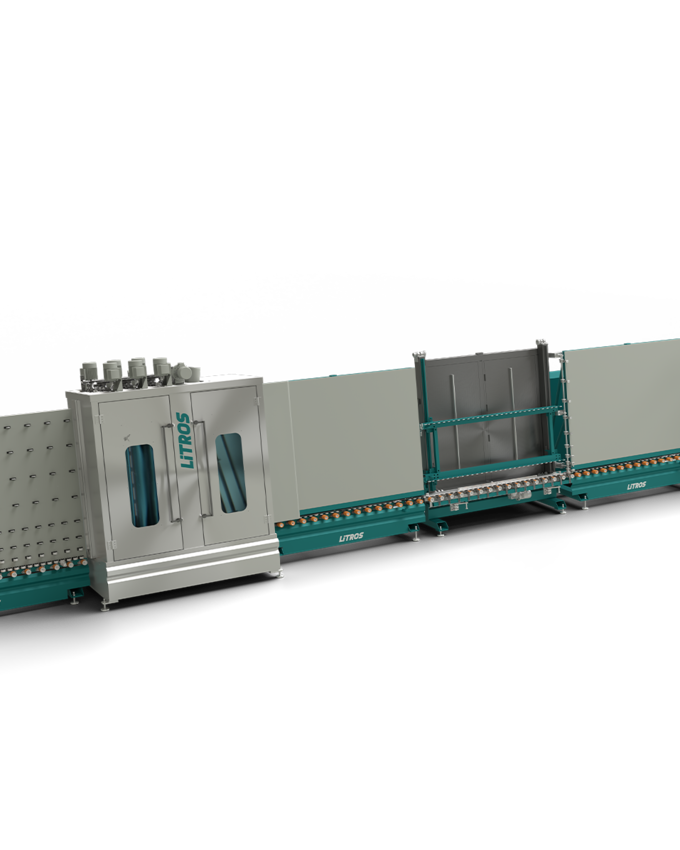

Cleaning and inspection
Glass sheet It is set up at the intake station and cleaned and dried during transport through the glass washing and drying plant. It is then transported on to the inspection and frame positioning station, where the window is visually inspected and, if necessary, cleaned.
02

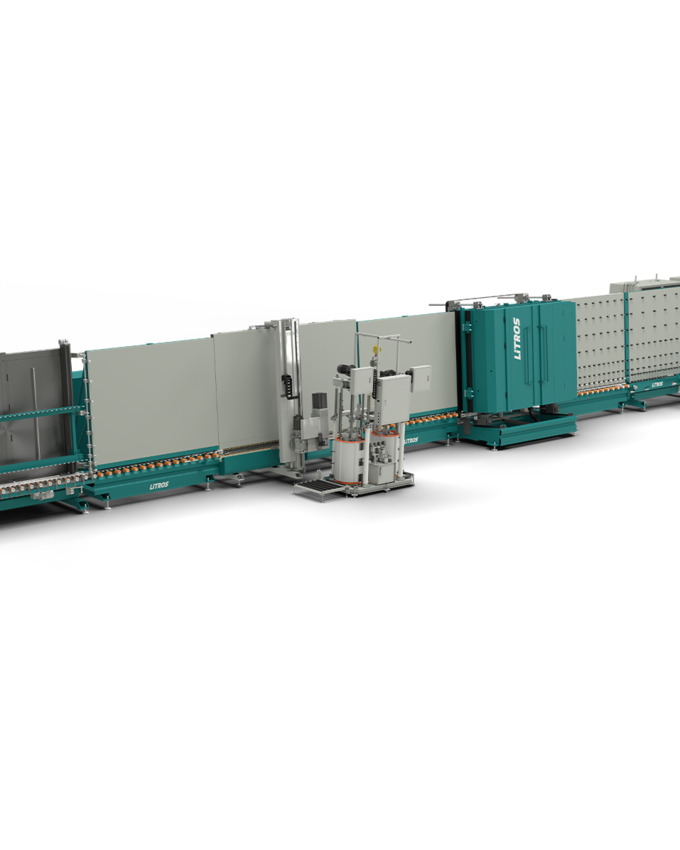

Application of the thermoplastic material
The first is then transported glass sheet into the assembly press and positioned. The second glass sheet is prepared separately and sent spacer frame to the press together with the. spacer It is either automatically frame applied as a thermoplastic or manually used as a rigid one. frame
03

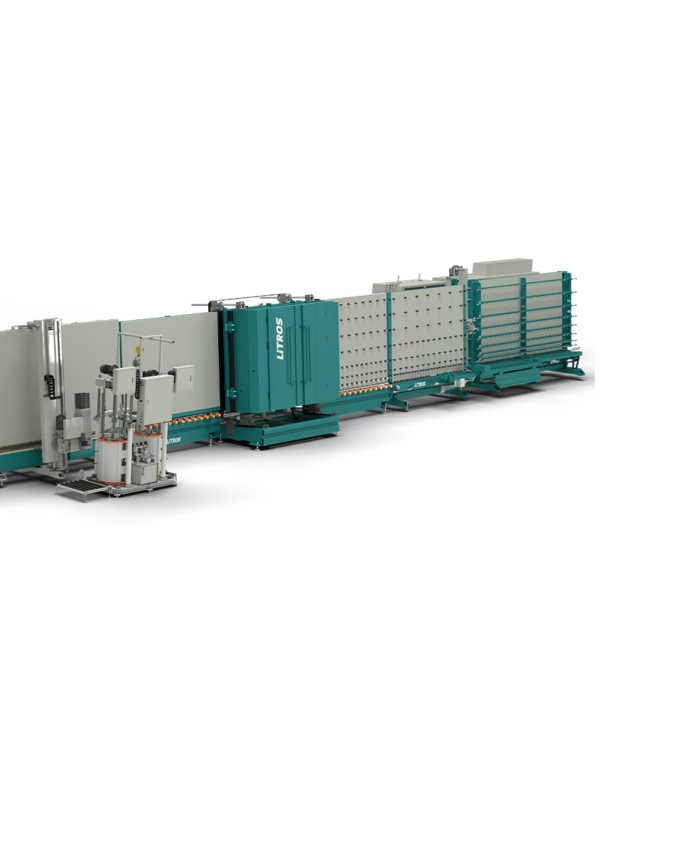

Assembly press and sealer
The glass panes are pressed in the assembly press. It is then sealing machine transferred insulating glass unit to the automatic system and sealed with secondary sealant.
Specifications
LiTROS IG Line Thermoplastic
Here you can find all relevant features of our machine.
Maximum element size: 3,600 × 2,400 mm
Processing: double and triple insulating glass
Glass thickness: 3 - 12 mm/3 - 30 mm (optional)
Spacer systems: Rigid and thermoplastic spacer
System inclination: 6°
Glass transport height: 550 mm ± 50 mm
General transport speeds: 43 m/min
